Enapter: Flexible, Scalable, Fast To Deploy

TODAY, OUR AEM ELECTROLYSERS ARE THE MOST COST-EFFECTIVE AND HIGH-PERFORMANCE SOLUTION FOR HYDROGEN PRODUCTION RANGING FROM 0.5 NM3/HR TO 10 NM3/HR.

ENAPTER ELECTROLYSER SYSTEMS

  • Production rate 0.5 Nm3/hr to 10 Nm3/hr
  • 4.8 kWh for 1 Nm3 of hydrogen
  • Each module produces 0.5 Nm3 or 500 NL per hour
  • Pre-compressed hydrogen to 35 bar
  • Rack-mountable in standard 19” cabinets
  • 99.999% purity with optional dryer

ENAPTER MONITORING AND CONTROL SYSTEM

Enapter addresses the critical importance of understanding both your system and the environment it operates in. Made of a network of sensors and interfaces, the monitoring and control solution complements our electrolysers. It enables complete control and peace of mind, no matter where in the world you or your system are.

Technical Details

  • Mobile application reduces monitoring system setup and update time to minutes with QR code
  • Comprehensive dashboard provides the full view of your hydrogen production data
  • Autonomous IoT Gateway and Communication Module continues to operate even if the core system is down
  • Highly scalable architecture allows to collect and integrate custom sensor data into the system
  • Hybrid Bluetooth & WiFi approach for data collection and remote management
  • Support of Industry 4.0 and IoT communication standards like OPC UA and MQTT
  • Predictive 24/7 monitoring system with SMS, email and call alerts

Security Standards

  • All communication is secured using strong TLS 1.2 protocol
  • Authorization system is based on X.509 ceftificates with 2048 bits encryption keys
  • Data is stored in highly reliable Tier 4 green data centre certified with ISO 27001:2013

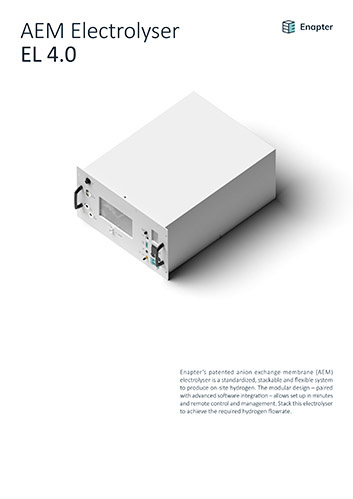

Download brochure here

CHFCE 2018 documents
